Keep Your RO System in Top Condition with This Step-by-Step Guide
At Machine 4 Africa, we believe that efficiency and longevity go hand-in-hand—especially when it comes to your reverse osmosis (RO) system. Regular cleaning of your RO membrane using a Clean-in-Place (CIP) procedure ensures optimal performance, reduces downtime, and extends the life of your equipment.
Whether you’re brewing beer or purifying water for production, here’s a clear and effective CIP process to follow.
✅ When Should You Perform CIP on Your RO System?
- A 10–15% drop in permeate flow
- A 10–15% increase in differential pressure
- A 1–2% drop in salt rejection rate
- At regular maintenance intervals based on usage
🧪 What You’ll Need

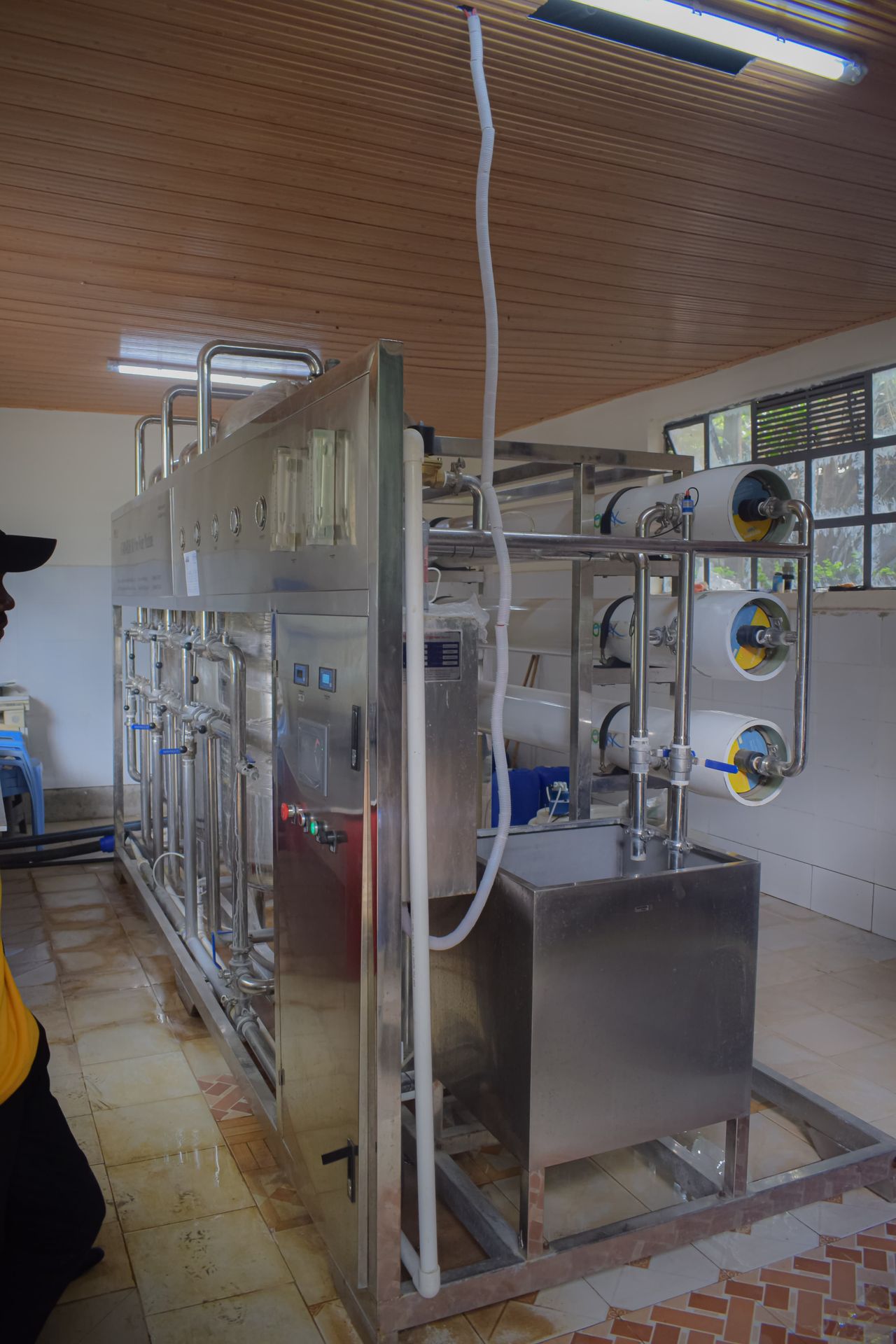

- CIP cleaning tank (usually integrated or portable)
- Chemical dosing pump
- Heating source (if required)
- pH meter and conductivity meter
-
Cleaning chemicals:
- Alkaline cleaner (e.g. sodium hydroxide-based) – for organic fouling and biofilms
- Acid cleaner (e.g. citric or phosphoric acid-based) – for scaling and inorganic deposits
- Soft or RO permeate water
🔁 Step-by-Step CIP Procedure
Step 1: Preparation
- Isolate the RO unit from the main process.
- Fill the CIP tank with clean, soft water.
- Heat the water if necessary (typically 30–35°C).
-
Add the cleaning chemicals (alkaline or acid) to the CIP tank.
- For organic fouling, start with alkaline cleaning.
- For scale or mineral build-up, start with acid cleaning.
Step 2: Circulation
- Begin circulating the cleaning solution through the RO membranes.
- Use a low flow rate initially, gradually increasing to the manufacturer’s recommended rate.
- Circulate for 30–60 minutes, depending on the level of fouling.
- Reverse flow direction halfway through the cleaning to ensure even distribution.
Step 3: Soaking (Optional)
- For severe fouling, stop circulation and allow the solution to soak in the membranes for 30–60 minutes.
- Resume circulation after soaking.
Step 4: Rinse
- Drain the chemical solution from the CIP tank and system.

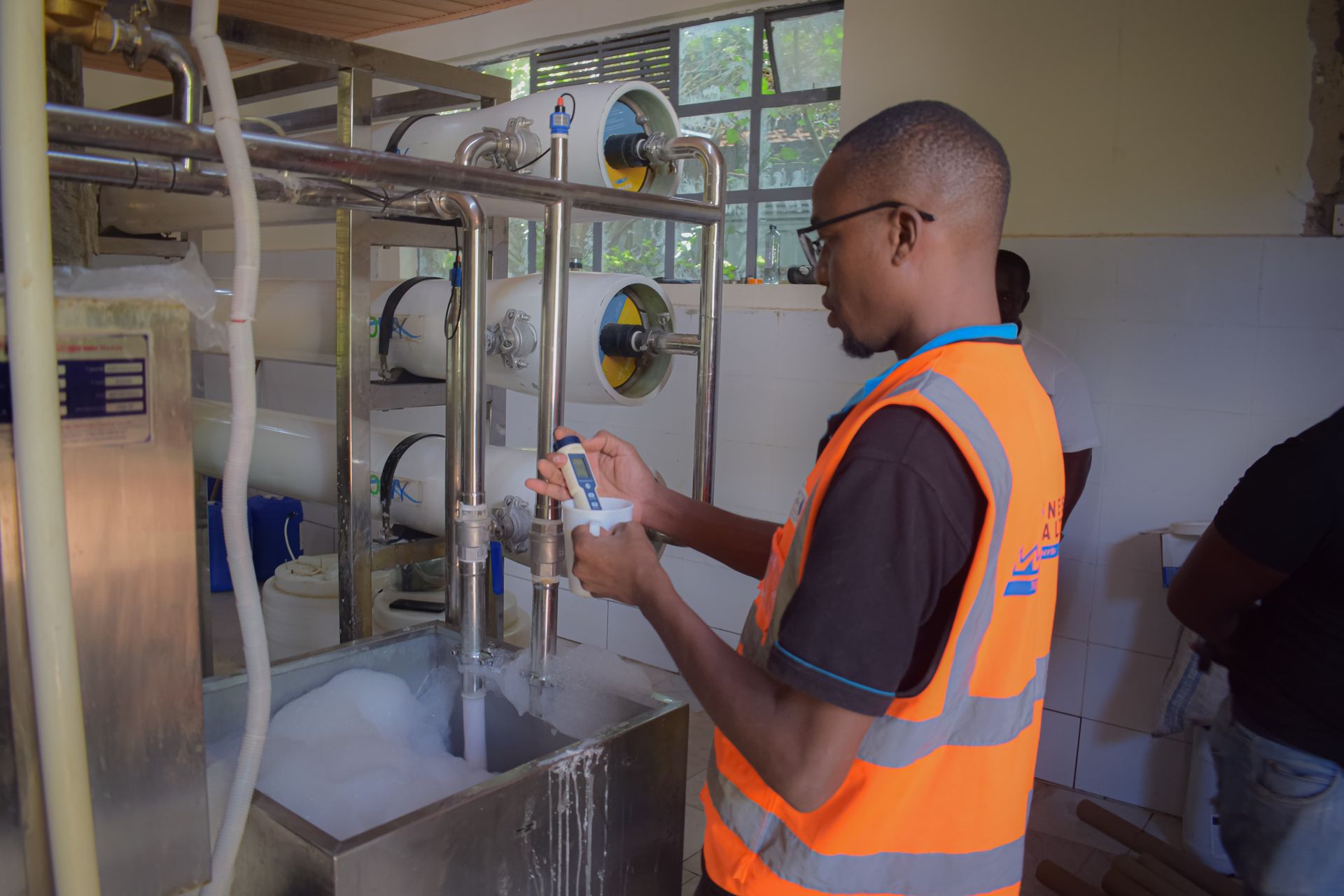

- Rinse with clean RO permeate or soft water until the pH and conductivity return to normal levels.
Step 5: Repeat (if needed)
- If membranes are heavily fouled, repeat the CIP with the second type of cleaner (alkaline or acid).
Step 6: Recommissioning
- Reconnect the RO system to the main process line.
- Gradually restart the system and monitor performance.
⚠️ Safety & Maintenance Tips
- Always wear PPE (gloves, goggles, apron) when handling chemicals.
- Follow the membrane manufacturer’s recommended pH and temperature limits.
- Log every CIP procedure for reference and performance tracking.
- Ensure the RO system is fully flushed before putting it back into service.
🛠️ Need Help or Equipment?

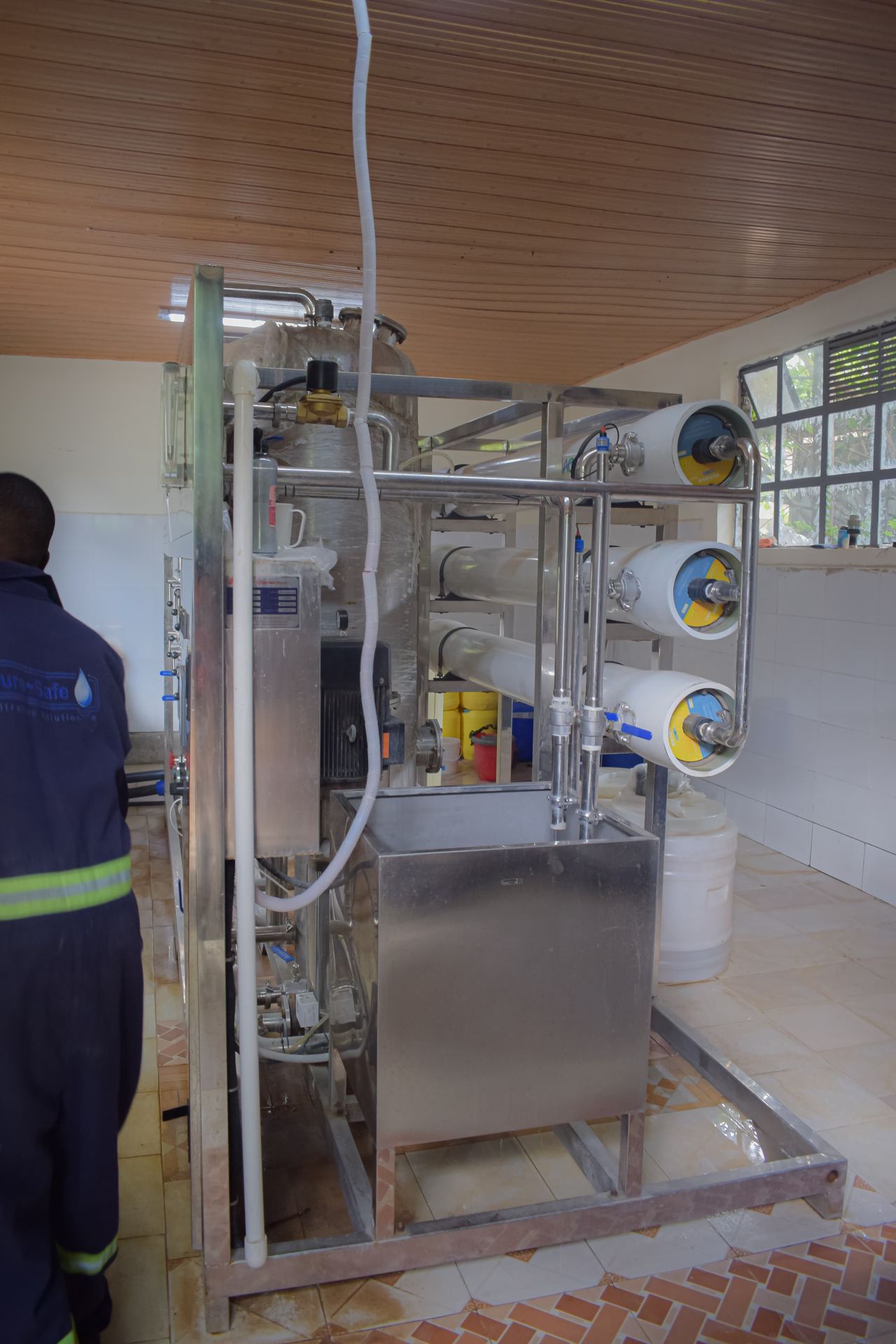

Machine 4 Africa provides fully equipped RO systems with integrated CIP stations, along with support and training for your team. Whether you’re running a brewery, water bottling plant, or food production line, we’ve got your filtration needs covered.
